5.8-inch 640*480 3Wire/4Wire SPI interface high-reflectivity black-white-red e-paper display

1. Module Name: 5.8-inch 640*480 3Wire / 4Wire SPI Interface High-Reflectivity Black-White-Red E-Paper Display
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: EPD, Black/White/Red
6. Display Colors: Black, White, Red
7. Resolution: 640*480
8. Dot Pitch: 183.3(H) x 183.3(V)
9. Viewing Angle: Ultra-Wide Viewing Angle
10. Controller IC: TBD
11. Display Type: EPD, Black/White/Red
12. Outline Dimensions: 125.4(H) x 99.5(V) x 1.26(D)
13. Dot Matrix Active Area: 118.7784(H) x 88.224(V)
14. Luminance: 0 cd/m²
15. Contrast Ratio:
16. Interface Type: 3-Wire / 4-Wire SPI
17. Pin Count: 24
18. Pin Pitch: 0.5mm
19. Connection Type: Plug-in Type
20. Operating Voltage: 3V
21. Backlight Color and Type: None
22. Backlight Circuit: None
23. Service Life: 50000h
24. Operating Temperature: 0～+50 ℃
25. Storage Temperature: -25～60°C
26. Product Certification: RoHS
27. Quality System Certification: ISO9001, ISO13485, IATF16949

Product Tags:

5.8-inch SPI e-paper display



high-reflectivity black-white-red e-paper



3Wire/4Wire SPI interface display

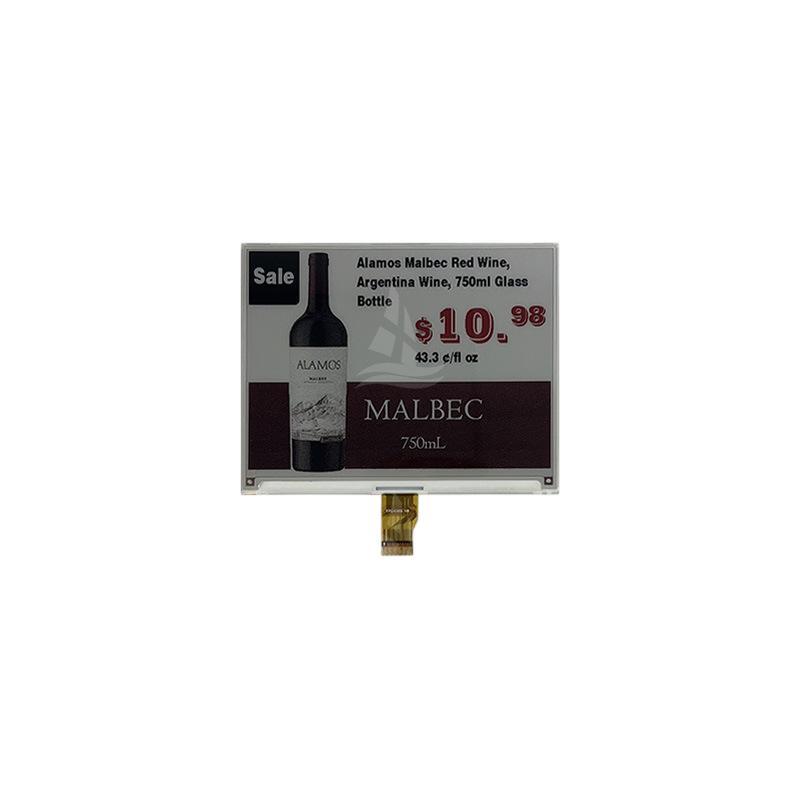

5.8-inch 640*480 3Wire/4Wire SPI interface high-reflectivity black-white-red e-paper display Images
